Find the Right Product for You

Finished goods are stored in EMI’s warehouse for immediate shipment. There is also a large inventory of raw stock on hand, so we are better able to meet your needs.

Manufacturing Standards

EMI’s growth is attributable to strict adherence to ASTM and industry standards and singular attention to our customers’ requirements and satisfaction. All of our PVC pipe products are fabricated from Type I, Grade I PVC manufactured to applicable ASTM and NSF standards. Threading is performed to ASTM F 480 specifications unless otherwise specified. All monitor well casing and screens are no-print, non-solvent cleaned, plastic wrapped and boxed. All environmental well products distributed by EMI are held to the same high standards.

Quality is Our Priority

At EMI we believe that the quality of our products is of the highest importance. Strict quality controls are in place to ensure only superior quality is maintained. Browse our catalog categories, or contact us for a consultation.

We look forward to working with you!

Can't find what you need?

Our sales have been to all 50 states and around the world. Call to schedule a consultation for your custom project.

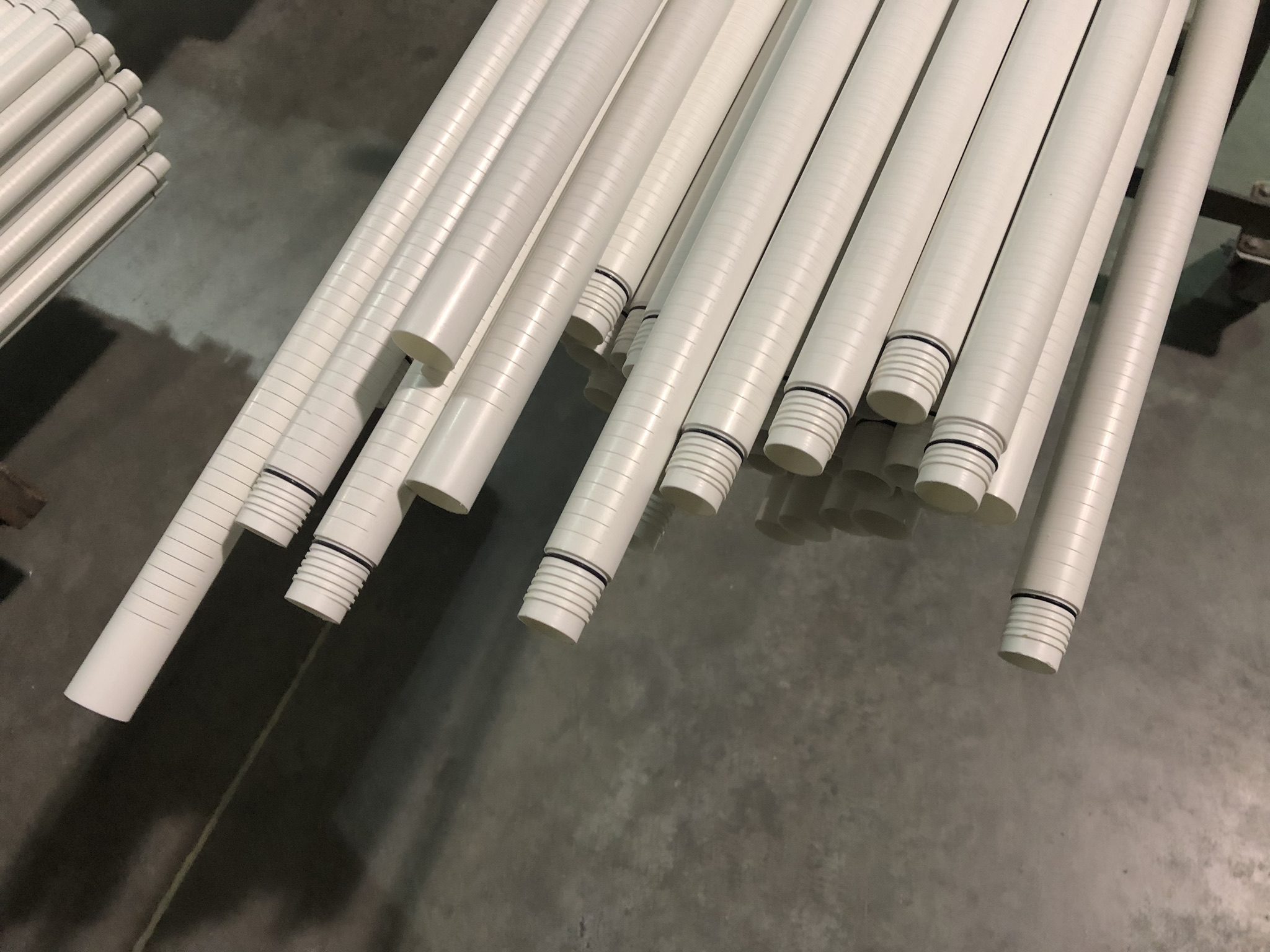

PVC Flush Joint Riser and Screen Monitor Pipe

Pipe Catalog

View our complete Pipe Catalog (PDF)

Contents:

PVC Monitor Pipe Specifications
SCH 40 PVC Weights and Dimensions
SCH 80 PVC Weights and Dimensions
SCH 40 Open Intake Area
SCH 80 Open Intake Area
SCH 40 Flush Thread
SCH 40 Flush Thread and Field Pack Screens
SCH 80 Flush Thread
UST Monitor Wells

PVC Monitor Pipe Specifications

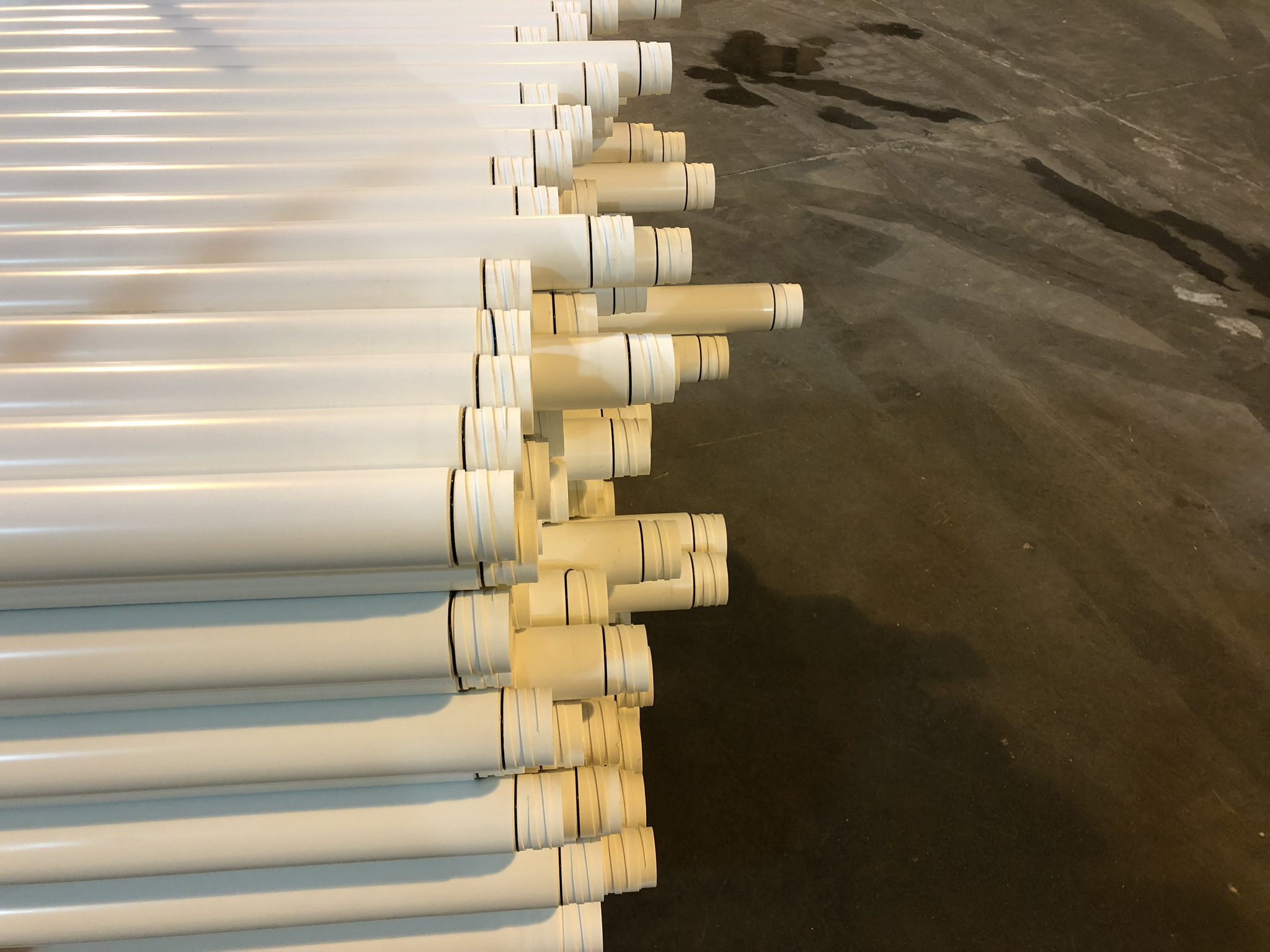

All casing, pipe, and screen shall be PVC Flush Threaded.
The PVC flush threaded casing pipe and screen shall be manufactured from Type 1, Grade 1 PVC resins as specified in ASTM D1785. The casing pipe shall also be approved by the National Sanitary Foundation (NSF) for use in potable water applications.
All PVC shall be free of ink markings.

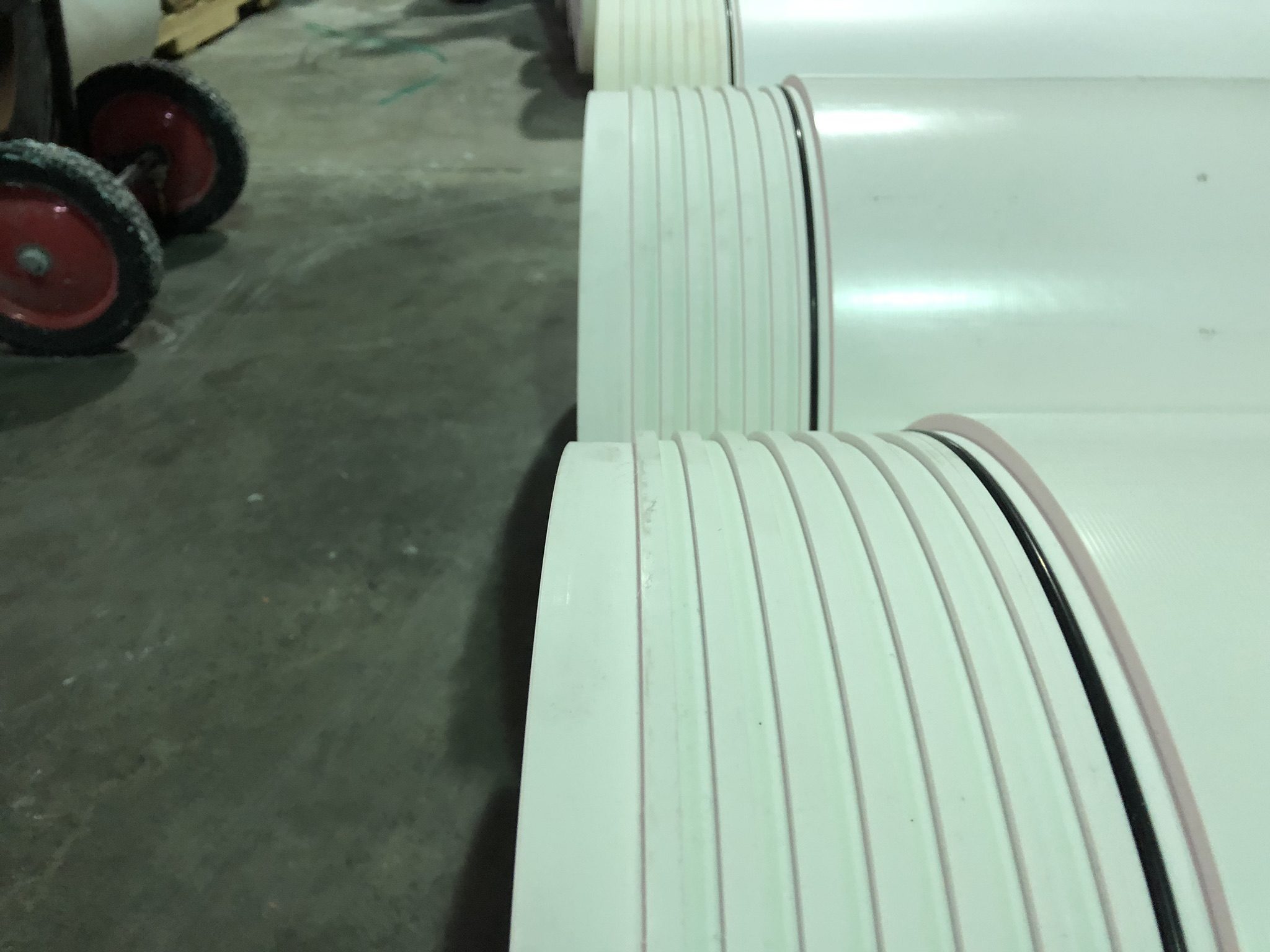

To Assure easy make up, the PVC monitor pipe and screen must be threaded to the ASTM F480 specification with O-ring groove turned in the male thread. The manufacturer will provide the O-ring.
All threaded connections must be manufactured using computer controlled threading machines to insure precision of cut and consistency between manufacturing lots.
All PVC flush threaded monitor pipe shall make up in stated lengths, shoulder to shoulder.

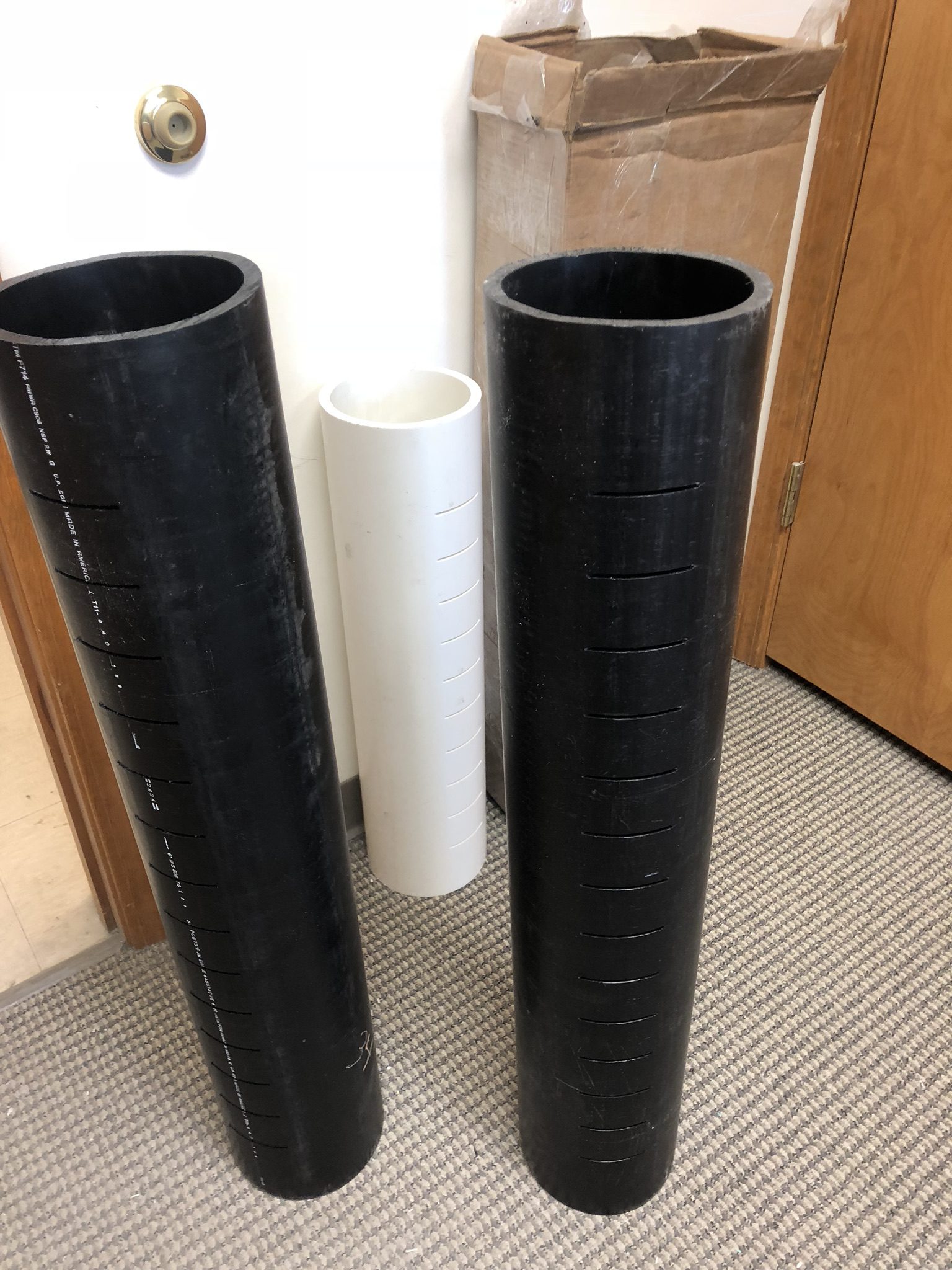

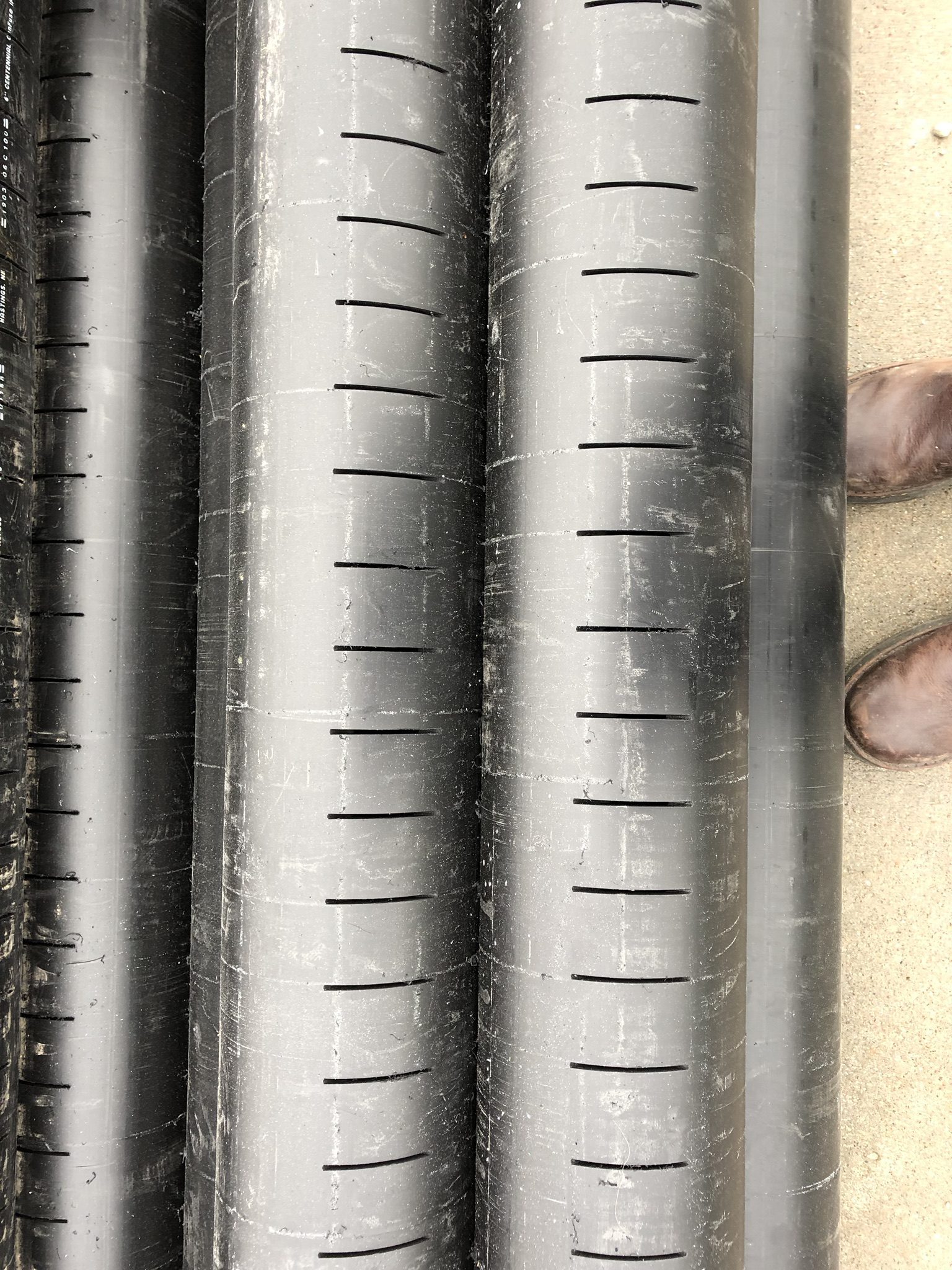

The slots in all PVC screen pipe must be cut on precision computer controlled slotting machines, providing uniform slot and space dimensions.
All PVC screen pipe must be de-burred and cleaned using a high pressure air and/or water process to ensure unobstructed and dust free slot opening.
The finished monitor pipe and screen shall be received in visibly clean condition, free of oil, grease, dirt, and fingerprints.

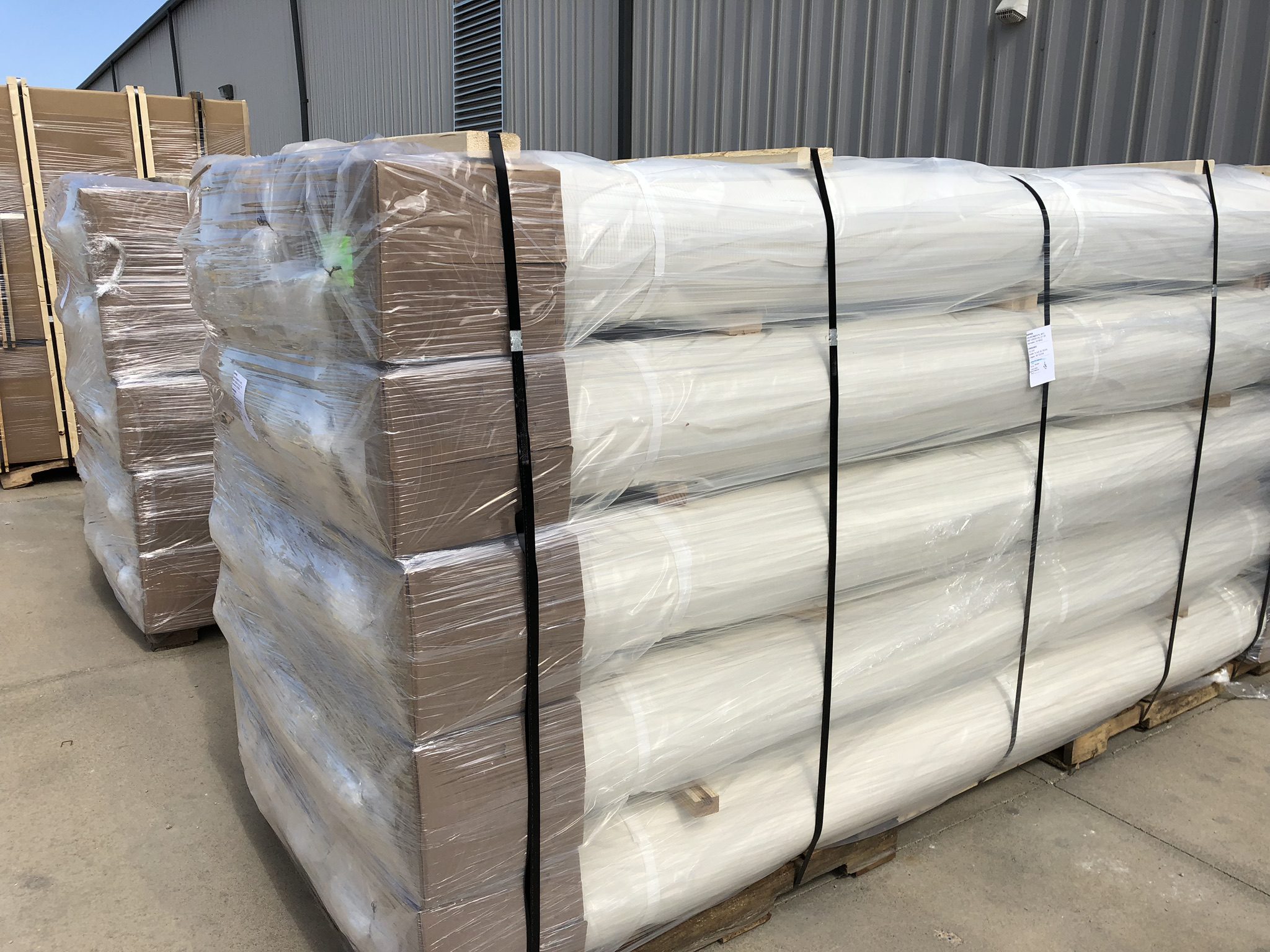

The monitor pipe and screen shall be individually packaged in plastic and then packed in heavy wall corrugated boxes clearly labeled with the brand name and contents.
